Constructive Heuristics for Traveling Salesman Problem (TSP)

Constructive Heuristics for Traveling Salesman Problem (TSP)#

Problem#

  • The Traveling Salesman Problem (TSP) is one of the most significant and well-studied combinatorial optimization problems.

    • Given: A set of cities with coordinates or distance matrix, a salesman

    • Objective: Minimize the total travelling distance

    • Constraints: Each city must be visited once and only once

Algorithm Design Task#

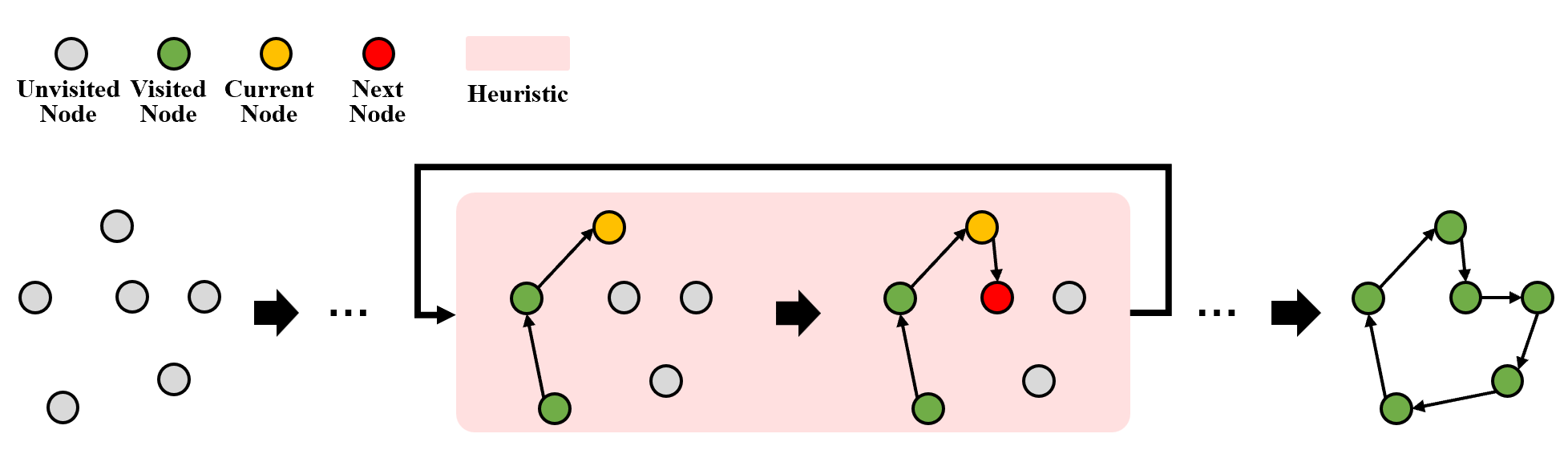

  • Constructive heuristics start from one city and iteratively select the next unvisited city. The task is to design the heuristic for selecting the next city in each iteration.

    • Inputs: Current city, destination city, unvisited city, distance matrix

    • Outputs: Next city

../../_images/tsp_construct.png

Evaluation#

  • Dataset: Each designed algorithm is evaluated on 16 TSP instances. The number of cities in each instance is 50 and the coordinates are randomly sampled from [0,1].

  • Fitness: The average distance of the route over the 16 instances is used as the fitness in search.

Template:#

template_program = '''
import numpy as np
def select_next_node(current_node: int, destination_node: int, unvisited_nodes: np.ndarray, distance_matrix: np.ndarray) -> int:
    """
    Design a novel algorithm to select the next node in each step.

    Args:
    current_node: ID of the current node.
    destination_node: ID of the destination node.
    unvisited_nodes: Array of IDs of unvisited nodes.
    distance_matrix: Distance matrix of nodes.

    Return:
    ID of the next node to visit.
    """
    # this is a placehold, replace it with your algorithm
    next_node = unvisited_nodes[0]

    return next_node
'''

task_description = "Given a set of nodes with their coordinates, you need to find the shortest route that visits each node once and returns to the starting node. The task can be solved step-by-step by starting from the current node and iteratively choosing the next node. Help me design a novel algorithm that is different from the algorithms in literature to select the next node in each step."
